To determine the holding or breaking strength of prong-ring attached snap fasteners onto garments. Consists of an Upper Snap Clamp, a Lower Fabric Clamp & Force Gauge mounted on a Stand. The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the Top Flywheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded.
Used for measuring the responsibility of garment manufacturer to ensure
button and firmware can be fixed on the ready-made garments properly,
Avoiding button drop from garment to brought danger to baby swallow.
Used for testing the vertical orientation tension of button and added touch.
Net Weight:35 kg
Accessories:
a) 30kg Impact Force Gauge: 1pc
b) Upper Stud Clamp: 1pc
c) Snap Clamp: 1pc

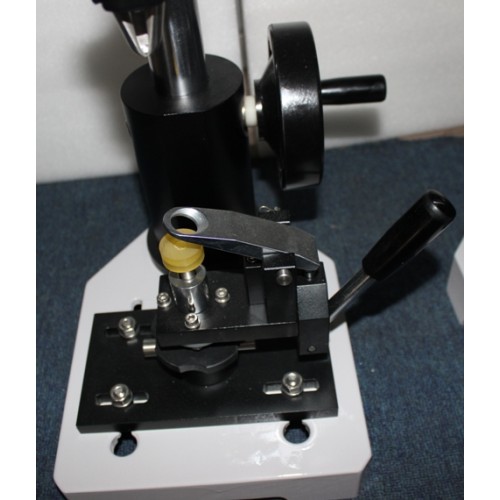

d) Lower Fabric Clamp, Lever Arm locking: 1pc
e) Three Pronged Clamp: 1pc
f) Long Nose Vise Grip: 1pc
g) Lower Grasp Button Accessory Kit: 1pc
h) 15Lbs Calibration Weight: 1pc
Standards:16 CFR 1500.51-53, ASTM WK4510 PS79-96,ASTM F963,EN71-Part1,
M&S P115A

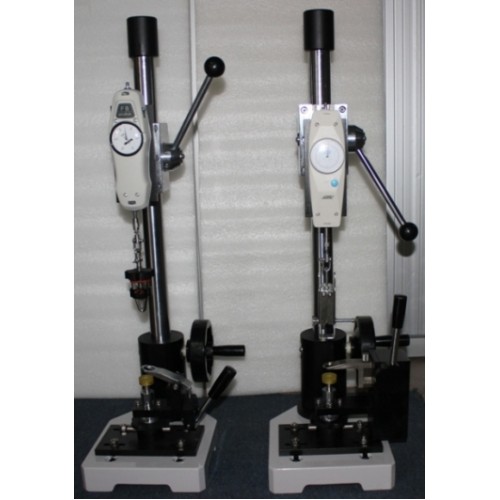

RS-T01-2 Button Pull Tester(Old model)

  • Product Code: RS-T01-2
  • Availability: In Stock

Tags: Button Pull Tester with standard instruments
